In an era dominated by cloud dashboards, Wi-Fi relays, and app-driven automation, it is easy to assume that traditional control methods are obsolete. In practice, Australian facility managers, strata committees, and industrial electrical contractors continue to specify mechanical time switches for one simple reason: absolute reliability. Where uptime is critical and access is limited, simplicity outperforms complexity. A mechanical time switch operates independently of software, firmware updates, network connectivity, and cybersecurity risks. It provides deterministic, repeatable switching for essential services such as car park lighting, pool filtration systems, exhaust fans, irrigation pumps, and base-load HVAC circulation.

Unlike digital alternatives, the mechanical time switch offers a visible, physical schedule that can be verified instantly. This transparency makes it particularly valuable in shared electrical infrastructure, where multiple stakeholders rely on predictable operation without specialist training or diagnostic tools.

Captive Tappet Programming and Physical Logic

The defining characteristic of a mechanical time switch is its analogue programming interface. The rotating dial represents a full 24-hour cycle and is divided into fixed time segments, commonly 15 or 30 minutes in duration. Each segment is controlled by a captive tappet that physically determines whether the internal switching mechanism will engage at that time.

Programming is entirely mechanical. When a tappet is set to the ON position, it engages a cam within the gear train. As the dial rotates, the cam actuates a microswitch, closing or opening the circuit at that precise interval. There is no memory, no stored logic, and no ambiguity. The schedule exists as a physical state that cannot be corrupted by electrical noise or reset by power cycling.

This design offers a major operational advantage. A technician inspecting a switchboard can immediately understand the programmed behaviour without powering the circuit, scrolling through menus, or consulting documentation. For compliance inspections, fault finding, and handovers, this clarity saves time and reduces risk.

Drive Mechanisms: Synchronous Versus Quartz

Mechanical time switches are typically manufactured with one of two drive systems. Synchronous motors derive timing accuracy directly from the mains supply frequency. In Australia, the grid operates at a regulated 50 Hz, which makes synchronous timers accurate over long periods. However, they stop during a power outage and resume from the incorrect time when power is restored.

Quartz-driven mechanical time switches resolve this limitation. These units incorporate a quartz crystal oscillator to control a stepper motor, independent of the mains frequency. An internal battery, commonly NiMH or lithium, maintains timekeeping during power interruptions. When supply is restored, the dial continues from the correct time of day.

For critical services such as security lighting or water circulation pumps, quartz drive is the preferred specification. It prevents unintended operation following outages and eliminates the need for manual clock resets at unmanned sites.

Load Ratings and Contact Protection

While mechanical time switches are robust, their internal contacts are not designed to carry heavy or highly inductive loads directly. Most units are rated at 16 A resistive. Modern electrical loads, particularly LED lighting drivers, motors, and compressors, can draw high inrush currents that exceed these limits momentarily but repeatedly. Over time, this causes contact erosion, welding, or thermal failure.

Best practice in professional installations is to use the time switch as a control device rather than a power device. The timer switches a low-current control circuit, which in turn energises a dedicated contactor. This architecture isolates the delicate timing mechanism from the electrical stress of the load.

This approach is standard in systems built with components from Schnap Electric Products, where DIN-rail contactors are paired with analogue control devices to manage lighting banks, pumps, and fans. The result is extended service life, improved safety, and predictable maintenance cycles.

Immunity to Electrical Noise and Harsh Environments

One of the most overlooked advantages of mechanical time switches is their immunity to electromagnetic interference. In industrial and commercial environments, switchboards often house variable speed drives, lift motors, and large transformers. These devices generate electrical noise that can disrupt microprocessor-based equipment.

Mechanical timers are unaffected by harmonics, voltage spikes, and radio frequency interference. Their operation depends solely on physical movement, making them ideal for plant rooms, mining infrastructure, and aging commercial buildings with unstable power quality. This resilience explains why mechanical time switches remain widely specified in environments where digital devices have proven unreliable.

Compliance, Installation, and Wiring Practice

Mechanical time switches used in Australian installations must comply with RCM requirements and be installed in accordance with AS/NZS 3000. Proper termination of control wiring is essential. Fine-stranded conductors should be fitted with bootlace ferrules to ensure secure connections and prevent strand damage at terminals.

Clear circuit identification and labeling are also critical. Mechanical timers are often part of shared switchboards servicing multiple systems. Accurate labeling reduces the risk of accidental adjustment and supports safe isolation during maintenance.

Procurement and Long-Term Reliability

The market includes many low-cost mechanical timers that appear identical externally but rely on plastic gear trains and lightweight contact assemblies internally. These units may function initially but often fail prematurely under continuous operation.

Professional contractors and facility managers mitigate this risk by sourcing mechanical time switches through specialised electrical wholesaler. These suppliers provide verified products, local technical support, and compatibility with established switchboard ecosystems. Access to matching accessories, contactors, and wiring components ensures consistent system performance.

Conclusion

The mechanical time switch remains a cornerstone of reliable facility automation. Its physical logic, visual programmability, and immunity to software failure make it uniquely suited to critical services that must operate predictably year after year. When paired with proper load isolation, quartz timekeeping, and quality switchboard components from manufacturers like Schnap Electric Products, it delivers a level of dependability that modern digital systems often struggle to match. In an industry driven by innovation, the enduring relevance of mechanical precision proves that some solutions are timeless.

In the modern Australian commercial audiovisual environment, the expectation of multi-screen presentation is no longer optional. Retail stores rely on synchronised promotional displays, hospitality venues require identical live content across dozens of screens, and corporate or industrial environments demand consistent visual information for operational clarity. Achieving this outcome requires more than simply duplicating a cable run. Digital video distribution operates within strict electrical and timing tolerances, and any compromise at the distribution point can undermine the entire system. The professional solution to this requirement is the HD Video Splitter, technically classified as an active Distribution Amplifier.

Unlike consumer adapters, a professional HD video splitter is engineered to accept a single digital source and deliver multiple identical outputs while maintaining signal integrity, timing accuracy, and content protection compliance. It ensures that every connected display receives a mathematically identical signal, regardless of cable length variations or display capabilities. In commercial systems designed for continuous operation, this device becomes a foundational element of reliability.

Active Distribution Versus Passive Splitting

The most important distinction to understand is the difference between active distribution and passive splitting. In the digital domain, passive splitting is fundamentally incompatible with HDMI signalling. HDMI relies on high-frequency differential data streams that are extremely sensitive to impedance changes. Attempting to divide this signal with a simple Y-cable results in voltage collapse, timing errors, and immediate handshake failure.

An HD video splitter operates as an active regeneration point. Internally, it receives the incoming TMDS signal, buffers it, equalises voltage levels, and re-clocks the data stream before transmitting it to each output port. This regeneration restores signal edge definition and eliminates jitter introduced by cable capacitance. As a result, the signal arriving at the final display remains stable and error-free, even in multi-screen configurations operating at high resolutions.

TMDS Signal Integrity and Re-Clocking

HDMI video transmission depends on Transition Minimized Differential Signaling. At higher resolutions, especially 4K, the data rate increases dramatically, making the signal more vulnerable to attenuation and timing skew. Without re-clocking, even minor inconsistencies between output paths can cause pixel errors or complete signal loss.

Professional HD video splitters include dedicated re-clocking circuitry for each output channel. This process realigns the data stream with a clean reference clock, effectively resetting the signal before it enters the next cable run. This capability is critical in commercial installations where cable lengths cannot always be perfectly matched or where displays are distributed across large physical areas.

EDID Management and Resolution Control

Extended Display Identification Data is one of the most common sources of instability in multi-screen systems. Each display communicates its supported resolutions, refresh rates, and audio formats to the source device. When multiple displays with different capabilities are connected, the source may default to the lowest common resolution or repeatedly renegotiate, causing flicker or black screens.

A professional HD video splitter includes an EDID management engine that allows the installer to control how the handshake is handled. The splitter can copy the EDID from a designated display, use a predefined EDID profile, or intelligently merge capabilities to maintain system stability. This function ensures that all displays receive a compatible signal while preserving maximum resolution where possible. Proper EDID control is essential in venues where legacy screens coexist with newer 4K panels.

HDCP Compliance and Content Protection

Commercial video content is protected by High-bandwidth Digital Content Protection. When protected material is detected, the splitter must authenticate itself as a legitimate repeater, decrypt the incoming stream, and re-encrypt it separately for each connected display. This process requires sufficient processing power and a valid pool of encryption keys.

Professional HD video splitters support HDCP 1.4 and HDCP 2.2, enabling the distribution of modern 4K content without interruption. Inferior devices often fail during simultaneous authentication, resulting in error messages or intermittent image loss. In regulated commercial environments, reliable HDCP handling is not optional; it is a contractual necessity.

Bandwidth, HDMI Versions, and Future Proofing

Not all HD video splitters are equal in terms of bandwidth capability. Devices limited to HDMI 1.4 can support only 10.2 Gbps, which restricts output to 4K at 30 Hz or lower. For smooth motion, digital signage, and HDR content, HDMI 2.0 support with full 18 Gbps throughput is required.

An underspecified splitter becomes a bottleneck in the signal chain, forcing the entire system to operate below the capability of the source and displays. Professional integrators must confirm support for 4K 60 Hz, appropriate chroma subsampling, and HDR metadata to ensure long-term usability. Selecting the correct splitter at the design stage prevents costly retrofits later.

Infrastructure Quality and Schnap Electric Products

The performance of an HD video splitter is closely tied to the quality of the surrounding infrastructure. HDMI cables, power supplies, and mounting hardware all influence system stability. This is where the ecosystem provided by Schnap Electric Products plays an important role.

High-speed HDMI leads engineered for commercial use maintain impedance control and shielding integrity, which is essential for sustaining high data rates. Proper cable management and strain relief prevent mechanical stress on HDMI ports, a common cause of intermittent faults in rack-mounted equipment. Additionally, surge-protected power distribution ensures that voltage fluctuations do not damage sensitive processing components within the splitter.

Installation Considerations and Thermal Management

HD video splitters are active electronic devices designed for continuous operation. In commercial racks or ceiling cavities, heat management is critical. Units should be mounted with adequate airflow and should never be buried under cable bundles or insulation.

Professional installations also prioritise accessibility. A splitter that requires periodic power cycling or firmware updates must be reachable without dismantling displays or infrastructure. Proper mounting hardware and structured cabling practices reduce maintenance costs and improve system uptime.

Procurement and Commercial Reliability

Consumer-grade splitters are often marketed as “4K compatible” but are designed for intermittent home use. In commercial environments, these devices frequently overheat, lock up, or fail under 24/7 duty cycles. The cost of a single service call often exceeds the price difference between consumer and professional hardware.

Commercial AV contractors mitigate this risk by sourcing equipment through specialised electrical wholesaler. These suppliers ensure RCM compliance, local warranty support, and compatibility with Australian electrical standards. Access to matching accessories and tested cabling further reduces deployment risk.

Conclusion

The HD video splitter is a critical control point in any multi-screen AV system. It performs the complex tasks of signal regeneration, timing control, resolution negotiation, and content protection, allowing a single source to be distributed reliably across a venue. By understanding the physics of digital signal distribution, prioritising EDID and HDCP management, and supporting installations with high-quality infrastructure from manufacturers like Schnap Electric Products, Australian professionals can deliver multi-display systems that are stable, scalable, and built for continuous operation. In commercial audiovisual design, distribution quality defines visual credibility.

In commercial audiovisual design and high-end residential integration across Australia, one constraint continues to shape system architecture more than any other: distance. While HDMI is the universal interface for digital video and audio, it was never engineered for long cable runs. As resolutions increase from 1080p to 4K and beyond, the limitations of passive copper HDMI cabling become more severe. In practical terms, a standard HDMI cable becomes unreliable beyond 10 to 15 metres, often exhibiting signal dropouts, intermittent “sparkles,” or complete loss of handshake between source and display.

For installations where the source equipment is centrally located in a rack room and the display is tens of metres away, direct HDMI cabling is no longer viable. This scenario is common in corporate offices, lecture theatres, hospitality venues, and large residences. The professional engineering response to this challenge is the HDMI Extender Over Cat 6. By converting HDMI into a format suitable for structured cabling, this solution allows uncompressed high-definition video, audio, and control signals to be transmitted reliably over distances of up to 100 metres.

Signal Physics and the Role of HDBaseT

The most widely adopted technology behind HDMI extenders over Cat 6 is HDBaseT. Unlike IP-based video distribution systems, which compress video into data packets and introduce latency, HDBaseT transports the HDMI signal in an uncompressed form. This distinction is critical in environments where image quality, responsiveness, and synchronisation are non-negotiable.

An HDBaseT system consists of a transmitter located at the source and a receiver positioned behind the display. The transmitter converts the HDMI TMDS signal into a pulse-amplitude modulated waveform optimised for twisted pair cabling. This signal can carry up to 18 Gbps of bandwidth, sufficient for 4K Ultra HD at 60 Hz with full colour depth. At the receiver end, the signal is reconstructed back into standard HDMI, delivering a bit-accurate image with zero perceptible latency.

Why Category 6 Cabling Is Essential

The performance of an HDMI extender is only as good as the cabling infrastructure it relies upon. While some extenders may function over Category 5e in limited scenarios, Cat 6 or Cat 6A cabling is the professional minimum standard for reliable 4K transmission.

Category 6 cable features tighter twist rates and improved insulation, which significantly reduce near-end and far-end crosstalk. These characteristics are essential for preserving signal integrity at high frequencies. Equally important is the conductor material. Solid-core, pure copper cable must be used for permanent runs. Copper clad aluminium introduces resistance and timing skew that can prevent extenders from synchronising correctly, leading to intermittent failures that are difficult to diagnose after installation.

Patch cords should be limited to short lengths between wall plates and devices. Long runs of stranded cable increase attenuation and undermine the benefits of HDBaseT technology.

Power Over Cable and Installation Efficiency

One of the defining advantages of HDMI extenders over Cat 6 is the use of Power over Cable, often referred to as PoC or Power over HDBaseT. In a conventional setup, both the transmitter and receiver require separate power supplies, which complicates installation and often necessitates additional electrical work behind displays.

With PoC, the transmitter injects low-voltage DC power into the Cat 6 cable, supplying the receiver remotely. This approach eliminates the need for a power outlet behind the screen, making it ideal for slimline wall-mounted displays and video walls. From an integration perspective, this reduces labour costs, simplifies compliance, and improves the visual finish of the installation.

Passive Infrastructure and Termination Quality

While transmitters and receivers attract the most attention, passive components play an equally critical role in system stability. Every termination, wall plate, and patch panel introduces potential impedance discontinuities. Poor termination quality can cause signal reflections that degrade the eye pattern and reduce system headroom.

This is where the broader infrastructure ecosystem from Schnap Electric Products becomes relevant. High-quality Category 6 data jacks and faceplates are engineered to preserve pair twist integrity right up to the point of termination. Proper cable management accessories help maintain minimum bend radius and prevent mechanical stress, both of which are essential for long-term performance.

Control Signals and System Integration

Modern HDMI extenders are not limited to video and audio transport. Professional-grade systems support bidirectional control channels, enabling full system integration. Infrared pass-through allows remote control commands to travel from the display back to the source, while RS-232 support enables integration with automation systems.

In a boardroom or lecture theatre, this means that equipment can remain hidden in a secure rack while remaining fully controllable from the user interface at the front of the room. This capability is central to clean AV design and is a key differentiator between professional extenders and consumer-grade alternatives.

HDCP Compliance and Content Protection

High-bandwidth Digital Content Protection is a frequent source of failure in HDMI distribution systems. Modern content sources require HDCP 2.2 compliance to output 4K material. If any device in the signal chain fails to authenticate correctly, the source will block the video signal entirely.

Professional HDMI extenders over Cat 6 are designed to manage HDCP handshakes transparently. Inferior devices often advertise 4K support but fail under real-world conditions, resulting in black screens or intermittent image loss. Ensuring full HDMI 2.0 and HDCP 2.2 compatibility is essential for commercial reliability.

Procurement and Risk Management

The market contains a wide range of low-cost extenders often described as “baluns.” These devices may function in controlled environments but lack the shielding, firmware stability, and compliance required for permanent installation.

Professional integrators mitigate this risk by sourcing through electrical wholesaler. These suppliers ensure equipment is RCM compliant for the Australian market and supported by local warranty channels. They also provide access to testing tools and compatible cabling, allowing installers to verify Cat 6 performance before commissioning the active hardware.

Conclusion

The HDMI extender over Cat 6 has become a foundational element of modern AV system design. It removes the distance limitations of native HDMI, enabling centralised equipment layouts and clean architectural outcomes. By understanding the physics of HDBaseT transmission, insisting on high-quality structured cabling, leveraging power over cable technology, and supporting installations with professional infrastructure from manufacturers like Schnap Electric Products, Australian integrators can deliver robust, high-performance video distribution across any building. In long-distance digital transmission, disciplined engineering at every layer is what transforms possibility into reliability.

In the rapidly evolving Australian audiovisual landscape, a persistent challenge exists at the intersection of legacy infrastructure and modern display technology. While contemporary commercial environments have standardised on HDMI for video distribution, a significant portion of critical backend equipment remains dependent on the Video Graphics Array standard. Industrial control systems, building management interfaces, medical imaging consoles, legacy servers, and security Digital Video Recorders often output only VGA. At the same time, modern flat-panel displays, LED walls, and projectors increasingly omit analog inputs altogether.

For system integrators, replacing functional legacy equipment is rarely economical or operationally practical. The engineering requirement is not replacement, but translation. This is where the VGA to HDMI upscaler becomes indispensable. Unlike a passive adaptor, this device is an active signal processor that converts analog video into digital form, scales the image to a modern resolution, embeds audio where required, and delivers a stable HDMI output compatible with today’s displays.

Analog-to-Digital Conversion Fundamentals

The first task of a VGA to HDMI upscaler is signal type conversion. VGA is an analog standard that transmits Red, Green, and Blue colour channels as continuous voltage levels, accompanied by horizontal and vertical synchronisation pulses. HDMI, by contrast, is a fully digital protocol that transmits binary data using Transition Minimized Differential Signaling.

To bridge this gap, the upscaler relies on a high-performance Analog-to-Digital Converter. The ADC samples the incoming voltage waveform thousands of times per second, converting each sample into digital values. The precision of this process determines image quality. Insufficient sampling resolution results in colour banding, shimmering edges, or unstable images. Professional upscalers are designed to lock onto a wide range of VESA standard timings and stabilise sync signals before conversion, ensuring consistent digitisation even from aging or electrically noisy VGA sources.

Resolution Scaling and Image Reconstruction

Conversion alone does not solve the problem. Most VGA sources output resolutions such as 800×600, 1024×768, or 1280×1024. When displayed on a 1920×1080 or 4K screen without proper processing, these images appear soft and poorly defined.

The scaler engine inside a VGA to HDMI upscaler performs mathematical interpolation to expand the original pixel grid. Using algorithms such as bilinear or bicubic scaling, the device generates additional pixels based on surrounding data, effectively reconstructing the image to match the native resolution of the display. This process significantly improves readability, particularly for text-heavy interfaces like industrial HMIs or legacy server dashboards. For control rooms and technical environments, clarity is not aesthetic. It is operationally critical.

Aspect Ratio Preservation

Another challenge lies in aspect ratio mismatch. VGA systems were largely designed around a 4:3 format, while modern displays use a 16:9 widescreen layout. Without proper handling, images are stretched horizontally, distorting graphics and undermining usability.

Professional VGA to HDMI upscalers provide aspect ratio control options. Integrators can maintain the original 4:3 geometry by adding pillar-box bars to the sides of the widescreen output. This preserves the intended proportions of diagrams, schematics, and user interfaces. In applications such as medical imaging, engineering visualisation, or security monitoring, geometric accuracy is essential and cannot be compromised for screen fill.

Audio Embedding and Synchronisation

VGA carries video only. HDMI expects both video and audio in a single stream. To achieve full compatibility, the upscaler must embed audio into the HDMI output.

Most professional units include an analogue audio input, typically via a 3.5 mm stereo jack. The device digitises this signal and synchronises it with the processed video stream. Because video scaling introduces processing delay, audio must be time-aligned to avoid lip-sync errors. High-quality upscalers manage this internally, ensuring audio remains locked to the video even during dynamic resolution changes.

Latency and Operational Performance

Latency is often overlooked in conversion devices. Consumer-grade converters may introduce several frames of delay, which is unacceptable in interactive environments. Cursor movement, touchscreen interaction, or live monitoring becomes sluggish and frustrating.

Professional VGA to HDMI upscalers are designed for low-latency operation, typically adding no more than one to two frames of delay. This makes them suitable for real-time applications such as control rooms, surveillance systems, and live presentation environments where responsiveness is critical.

Power, Cabling, and Physical Integration

As active devices, VGA to HDMI upscalers require external power. Depending on the model, this may be supplied via USB or a dedicated DC adaptor. Stable power delivery is essential, as voltage fluctuations can destabilise the scaler chip and cause intermittent signal loss.

This is where the broader infrastructure ecosystem from Schnap Electric Products becomes relevant. High-quality HDMI leads are required to carry the upscaled digital signal without introducing handshake failures or sparkles. Surge-protected power distribution helps shield sensitive electronics from electrical noise, particularly in industrial environments where motors, lifts, and heavy machinery share the same supply. Proper mounting accessories ensure the upscaler is secured behind displays or within racks, preventing mechanical strain on legacy VGA ports.

Compliance and Procurement Considerations

The market is saturated with low-cost VGA converters that lack proper scaling engines, introduce excessive latency, or fail electromagnetic compatibility requirements. These devices may work temporarily but often degrade under continuous operation.

Professional AV integrators mitigate this risk by sourcing equipment through specialised electrical wholesaler. These suppliers ensure products meet Australian regulatory standards and are suited to long-term commercial deployment. They also provide access to compatible cabling, mounting hardware, and test equipment, allowing installations to be completed to a professional standard rather than improvised on site.

Conclusion

The VGA to HDMI upscaler is a critical enabler of continuity in modern AV systems. It allows organisations to preserve the value of reliable legacy equipment while embracing modern display technology. By understanding analog-to-digital conversion physics, prioritising high-quality scaling, managing aspect ratios correctly, and supporting installations with robust infrastructure from manufacturers like Schnap Electric Products, Australian industry professionals can deliver seamless, high-definition integration across generations of technology. In commercial AV, intelligent adaptation is often more valuable than replacement.

In the complex landscape of Australian commercial audiovisual integration, the need to manage multiple high-definition video sources and distribute them to multiple displays is no longer a luxury. It is a baseline operational requirement. Sports venues demand the ability to route different live events to different screens instantly. Corporate facilities require flexible presentation switching between laptops, video conferencing systems, and signage players. Education campuses rely on centralised control to manage lecture theatres, overflow rooms, and recording systems.

Simple point-to-point cabling cannot support this level of flexibility. Even basic switchers and splitters fall short because they restrict signal flow to one-to-many or many-to-one paths. The engineering solution that enables true any-input-to-any-output routing is the HDMI matrix switch. This device forms the logical and physical core of the AV system, allowing multiple HDMI sources to be routed independently or simultaneously to multiple display endpoints without signal degradation or delay.

Cross-Point Architecture and Signal Integrity

At its core, an HDMI matrix switch is built around a non-blocking cross-point architecture. In a typical 4x4, 8x8, or larger configuration, every input can be mapped to any output, regardless of how other routes are configured. This requires more than simple switching. It demands high-speed internal signal management capable of maintaining HDMI timing accuracy.

HDMI signals rely on Transition Minimized Differential Signaling. As data passes through the matrix backplane, it must be re-clocked and equalised to remove jitter and compensate for internal trace length variation. Professional-grade matrices use high-bandwidth internal buses rated at 18Gbps or higher to support 4K Ultra HD at 60Hz with full colour sampling and HDR metadata. Without sufficient internal headroom, switching delays, image sparkles, or complete signal loss can occur.

Zero-latency switching is a defining requirement. Unlike IP-based video distribution, an HDMI matrix does not compress or packetise the signal. The output is a bit-perfect replica of the input, making the matrix suitable for live broadcast, gaming, and real-time presentation environments.

EDID Management and Mixed-Resolution Environments

One of the most challenging aspects of HDMI matrix deployment is Extended Display Identification Data management. EDID defines the resolution, refresh rate, colour depth, and audio formats that a display can accept. In a direct connection, this process is simple. In a matrix environment, it becomes complex.

Consider a venue where a single source must feed both a 4K LED wall and an older 1080p monitor. If unmanaged, the source may detect the lower-resolution display and reduce output quality for all connected screens. Professional HDMI matrix switches address this through advanced EDID control.

Integrators can select predefined EDID profiles, upload custom EDID data, or force the matrix to present a virtual display capability to the source. In more advanced systems, individual outputs include internal scalers that downscale the signal for legacy displays while preserving native resolution on premium screens. This capability is critical in retrofit projects where infrastructure upgrades are staged over time.

HDCP Encryption and Content Protection

High-bandwidth Digital Content Protection governs the legal transmission of protected video content. An HDMI matrix switch operates as an HDCP repeater, sitting between the source and multiple displays. It must decrypt the incoming stream and re-encrypt it for each output independently.

Modern content sources require HDCP 2.2 compliance for 4K playback. If any device in the chain fails authentication, the source will block the signal entirely. High-quality matrices include robust HDCP key storage and management engines that allow simultaneous authentication across all outputs. Inferior devices may pass handshake intermittently, resulting in flickering, blank screens, or green artefacts.

For commercial venues displaying subscription television, streamed content, or protected media, HDCP reliability is non-negotiable.

Control System Integration

In professional installations, HDMI matrix switches are rarely operated manually. They are integrated into central control systems that manage the entire room or building.

Most commercial-grade matrices support multiple control interfaces, including RS-232 serial, infrared, and Ethernet-based IP control. This allows integration with building automation and AV platforms. Control systems can issue routing commands, monitor status, and provide user-friendly touch panel interfaces that abstract the complexity of the matrix from the end user.

Bidirectional communication ensures system awareness. When a route changes, the control system receives confirmation, maintaining synchronisation between physical signal paths and user interface feedback.

Rack Infrastructure and Power Conditioning

HDMI matrix switches are rack-mounted devices that generate heat and carry substantial cabling loads. Poor physical installation can compromise long-term reliability.

This is where the infrastructure ecosystem from Schnap Electric Products becomes important. Proper rack shelves, rear cable support rails, and strain relief prevent HDMI connectors from bearing the weight of multiple heavy cables. Power conditioning is equally critical. Voltage transients from HVAC systems or lift motors can disrupt matrix operation or damage internal logic. Rack-mounted power rails with surge suppression protect the investment and reduce downtime.

Thermal management must also be considered. Adequate ventilation and airflow spacing ensure that the matrix can operate continuously in 24/7 environments without thermal throttling or shutdown.

Procurement, Compliance, and Reliability

The market contains many consumer-grade HDMI matrix devices that appear suitable on paper but lack the durability required for commercial use. These units often suffer from poor heat dissipation, unstable firmware, and limited HDCP compatibility.

Professional AV integrators mitigate this risk by sourcing equipment through specialised electrical wholesaler. These suppliers ensure Regulatory Compliance Mark certification for Australian electrical and electromagnetic standards, provide firmware support, and offer local warranty coverage. They also supply compatible cabling and accessories, ensuring the entire system operates as a cohesive platform rather than a collection of mismatched components.

Conclusion

The HDMI matrix switch is the command centre of modern commercial AV systems. It enables precise, flexible control of visual content across diverse spaces and audiences. By understanding cross-point architecture, mastering EDID and HDCP management, integrating robust control systems, and supporting the hardware with quality rack infrastructure from manufacturers like Schnap Electric Products, Australian industry professionals can deliver AV systems that are powerful, scalable, and dependable. In complex environments, the matrix is not just a switch. It is the system controller.

In the diverse architectural landscape of Australian commercial and residential property, audiovisual integration is often constrained by the building itself. Heritage-listed façades, asbestos-containing wall cavities, post-tensioned concrete slabs, and modern glass-partitioned interiors regularly prohibit drilling or surface conduit. In these environments, running HDMI or structured cabling is either unsafe, illegal, or aesthetically unacceptable.

When physical infrastructure cannot be modified, the professional solution is the HDMI wireless extender. Unlike consumer casting devices designed for casual streaming, a professional wireless extender establishes a dedicated point-to-point video link between a source and a display. It replaces copper or fibre with radio frequency transmission while maintaining predictable latency, stable bandwidth, and deterministic behaviour required in corporate, education, and hospitality settings.

RF Propagation Fundamentals: 5GHz and 60GHz

Wireless video performance is dictated by the physics of radio propagation. In professional HDMI wireless extenders, two frequency bands dominate: 5GHz and 60GHz. Each serves a distinct application profile.

Systems operating in the 5GHz band use wavelengths capable of passing through plasterboard, light timber framing, and furniture. This makes them suitable for residential and light commercial retrofits where the source and display are separated by one or two walls. However, 5GHz is a crowded spectrum. Wi-Fi access points, laptops, phones, and IoT devices all compete for airtime. While modern extenders use proprietary modulation and channel management to improve stability, interference remains a design consideration.

At the other end of the spectrum, 60GHz millimetre-wave systems behave very differently. These signals cannot penetrate walls and behave more like light than traditional radio waves. Their advantage lies in enormous available bandwidth. This allows transmission of uncompressed or near-uncompressed video with latency measured in microseconds rather than milliseconds. As a result, 60GHz extenders are the preferred choice for in-room presentation systems, interactive whiteboards, and boardrooms where cursor lag or lip-sync delay is unacceptable.

Latency and Compression Trade-Offs

Bandwidth determines how much compression is required. A raw 1080p60 signal requires several gigabits per second. Most wireless systems cannot sustain this rate without compression.

Entry-level wireless extenders apply H.264 compression similar to online streaming platforms. While efficient, this introduces visible artefacts and latency that can exceed 200 milliseconds. For digital signage or passive display content, this delay is usually acceptable. For live presentations, video conferencing, or interactive demonstrations, it is not.

Higher-end HDMI wireless extenders use visually lossless or line-based compression techniques. These reduce bandwidth without altering visible pixel data and keep latency below the threshold of human perception. Correct specification depends on the application. Engineers must define whether the system is intended for passive viewing or interactive use before selecting a technology platform.

Interference Management and Channel Stability

Wireless video links must coexist with other RF systems. In dense urban environments, spectrum congestion is a reality. Professional HDMI wireless extenders mitigate this through dynamic channel management.

Advanced systems continuously scan the RF environment and evaluate signal-to-noise ratios. If interference is detected, the extender shifts to a cleaner channel without interrupting the video stream. This process, known as Dynamic Frequency Selection, is essential in offices, hotels, and education campuses where wireless conditions change throughout the day.

Millimetre-wave systems reduce interference risk by operating in a less congested band, but they require clear line-of-sight. Placement accuracy is critical. Minor misalignment can degrade signal quality, so careful mounting and commissioning are required.

Power Stability and Physical Integration

Although the video path is wireless, the transmitter and receiver remain physical devices requiring stable power and secure mounting. Voltage fluctuation can affect RF oscillators and cause link instability.

This is where the support ecosystem from Schnap Electric Products becomes relevant. Powering wireless extenders through surge-protected outlets reduces the risk of dropouts caused by transient voltage events. In display installations, recessed mounting solutions and cable management accessories ensure that receivers and power packs fit neatly behind wall-mounted screens without mechanical stress.

Short, high-quality HDMI patch leads are also critical. Poor shielding can allow the HDMI signal itself to radiate interference into the wireless module. Proper strain relief prevents connector fatigue, which is a common failure point in retrofit installations.

ACMA Compliance and Regulatory Obligations

Wireless transmission in Australia is regulated by the Australian Communications and Media Authority. Devices must operate within defined frequency bands and power limits under class licence conditions. Non-compliant equipment can interfere with radar, telecommunications, or emergency services.

Professional HDMI wireless extenders sold through authorised Australian channels carry the Regulatory Compliance Mark, indicating compliance with ACMA standards. Integrators must avoid grey-market imports designed for overseas frequency allocations. The legal and operational risk of non-compliant RF equipment far outweighs any short-term cost savings.

Installation Strategy and Environmental Suitability

Successful deployment of a wireless extender requires realistic assessment of the environment. Wall composition, ceiling height, reflective surfaces, and human traffic all influence RF behaviour.

For 5GHz systems, wall density and neighbouring networks are key considerations. For 60GHz systems, line-of-sight and mounting stability are paramount. In both cases, pre-installation testing is recommended. Many professional extenders include signal strength indicators or alignment tools to assist commissioning.

Wireless does not eliminate planning. It replaces cable routing complexity with RF engineering discipline. When deployed correctly, it provides reliable, repeatable performance.

Procurement and Long-Term Reliability

Wireless extenders are active electronic devices with firmware, RF components, and power regulation circuits. Long-term reliability depends on build quality, thermal design, and ongoing manufacturer support.

Electrical wholesaler act as technical gatekeepers in this space. They supply ACMA-approved hardware, firmware updates, and compatible accessories. They also provide guidance on matching extender capabilities to project requirements, reducing the risk of under-specification or over-engineering.

Conclusion

The HDMI wireless extender is a critical tool for modern retrofit AV projects. It enables high-definition video distribution where cabling is impractical or prohibited, without compromising usability or aesthetics. By understanding RF propagation physics, selecting the appropriate frequency band, managing latency expectations, and supporting the installation with quality infrastructure from manufacturers like Schnap Electric Products, Australian industry professionals can deliver wireless video systems that are stable, compliant, and fit for purpose. In challenging buildings, wireless is not a compromise. It is a specialised engineering solution.

In the architecture of modern Australian audiovisual systems, the success of a distributed video link is ultimately determined at the display endpoint. While system designers often concentrate on matrix switches, transmitters, and rack-side infrastructure, the reliability of the entire signal chain depends equally on the HDMI Receiver Unit. This device, commonly referred to as the Rx module, is responsible for translating long-distance digital transmission back into a native HDMI signal that a display can render accurately and consistently.

The HDMI receiver unit is not a passive adapter. It is an active electronic component that reconstructs high-speed data, negotiates power delivery, manages content protection, and interfaces with control systems. In commercial environments such as corporate boardrooms, lecture theatres, hospitals, and digital signage networks, the receiver unit defines the quality of the “last mile” connection. Any instability at this point undermines the performance of the entire AV system.

Signal Reconstruction and Decoding Physics

In a typical HDBaseT or similar structured-cabling architecture, the HDMI signal undergoes significant transformation before it reaches the display. At the transmitter, the native HDMI signal is converted into a modulated format suitable for long-distance transport over Category 6 cabling. This signal is subject to attenuation, crosstalk, and electromagnetic noise as it travels through ceiling spaces and wall cavities.

The HDMI receiver unit acts as the inverse engine of this process. Its internal chipset performs clock recovery, data equalisation, and error correction to reconstruct a clean Transition Minimized Differential Signaling data stream. This process is time-critical. If the receiver cannot accurately realign the pixel clock, visual artefacts such as sparkles, intermittent black frames, or total signal loss will occur. Professional-grade receiver units are engineered with sufficient processing headroom to support 4K Ultra HD at 60Hz, ensuring stable image reproduction even under marginal cabling conditions

Power over HDBaseT and Heat Management

One of the major advantages of modern HDMI receiver units is their ability to operate without a local power supply. Through Power over HDBaseT or Power over Cable standards, the receiver negotiates DC power from the transmitter across the same Category 6 cable carrying the video signal. This eliminates the need for a General Power Outlet behind wall-mounted or recessed displays, which is often impractical in commercial fit-outs.

However, this convenience introduces thermal considerations. The receiver unit contains active silicon performing continuous decoding, decryption, and power conversion. In confined spaces behind slim displays, heat accumulation can lead to instability or thermal shutdown. Best practice requires that the receiver is mounted with adequate ventilation and mechanical support. The Schnap Electric Products ecosystem supports this requirement through ventilated mounting solutions, cable management accessories, and strain-relief systems that allow the receiver to remain secure while maintaining airflow.

HDCP Authentication and EDID Management

Content protection is a non-negotiable requirement in modern AV systems. The HDMI receiver unit is a key participant in the High-bandwidth Digital Content Protection handshake. When protected content is transmitted, the receiver must authenticate with the display and relay confirmation upstream to the source or matrix switch. If the receiver does not support the correct HDCP version, typically HDCP 2.2 for 4K content, the entire system will fail, resulting in a black screen.

In addition to HDCP, the receiver manages Extended Display Identification Data. It reads the display’s capabilities, including resolution, refresh rate, colour depth, and audio formats, and communicates this information back to the source. Accurate EDID handling ensures that the source outputs a compatible signal. Poor EDID management can force displays into unsupported modes or limit resolution unnecessarily, degrading the user experience.

Control Signal Integration

In professional installations, the HDMI receiver unit is often more than a video endpoint. It serves as a control interface between automation systems and the display. Most commercial receivers provide ports for Infrared and RS-232 control, allowing commands to travel bi-directionally across the same Category 6 cable as the video signal.

This integration enables centralised control of display power, input selection, volume, and status monitoring. For example, a control processor can send a “Power On” command through the transmitter, across the structured cabling, and out of the receiver directly into the display. Feedback from the display can travel back along the same path, allowing the system to confirm successful operation. This bidirectional communication is essential for synchronised, reliable AV systems in meeting rooms and educational facilities.

The Importance of the Final HDMI Connection

The physical HDMI patch lead connecting the receiver to the display is often overlooked, yet it is critical. Even a short, low-quality HDMI cable can introduce impedance mismatch, poor shielding, or mechanical strain that destabilises the signal. Wall-mounted displays place constant stress on connectors, especially if cable weight is unsupported.

High-quality HDMI patch leads with proper shielding, robust strain relief, and certified bandwidth performance are essential at this final connection. Schnap Electric Products supplies high-speed HDMI leads designed specifically for permanent installations, along with recessed wall plates and brush systems that preserve bend radius and protect the integrity of the structured cabling.

Reliability, Maintenance, and Supply Chain Considerations

Receiver units are frequently installed in locations that are difficult to access once the system is complete. A frozen or unstable receiver often requires removing a heavy commercial display from the wall, creating safety risks and downtime. For this reason, reliability and firmware stability are as important as raw performance.

Professional AV integrators mitigate this risk by sourcing matched transmitter and receiver pairs through specialised electrical wholesaler. These suppliers ensure compatibility, regulatory compliance, and ongoing firmware support. They also provide access to mounting accessories and testing tools that allow installers to verify signal quality at the endpoint before system handover.

Conclusion

The HDMI receiver unit is the silent anchor of distributed audiovisual systems. It performs the complex tasks of signal reconstruction, power negotiation, content authentication, and control integration, all within a compact enclosure behind the display. By understanding the physics of decoding, managing thermal and power constraints, and supporting the installation with professional infrastructure from manufacturers like Schnap Electric Products, Australian industry professionals can deliver AV systems that are stable, scalable, and visually flawless. In modern AV design, the quality of the experience is defined at the endpoint, and the receiver unit is where that experience is ultimately secured.

In the evolving landscape of Australian audiovisual integration, the limitations of traditional copper HDMI cabling have become one of the most significant constraints on system design. As commercial environments move rapidly from Full HD to 4K Ultra HD, and increasingly toward 8K and high-frame-rate content, the data rates demanded of interconnects have escalated dramatically. Where 1080p required under 5 Gbps, 4K at 60Hz with full colour resolution demands 18 Gbps, and HDMI 2.1 pushes this to 48 Gbps. At these frequencies, copper conductors struggle to maintain signal integrity over distance, resulting in the well-known digital cliff where images drop out entirely rather than degrading gracefully.

To overcome this limitation without introducing bulky extender boxes, external power injectors, or compressed transmission methods, the industry has adopted the HDMI Active Optical Cable. This technology replaces electrical transmission with light for the most demanding signal paths, enabling uncompressed, zero-latency video delivery over distances exceeding 100 metres. For commercial AV designers, this fundamentally changes how equipment rooms, displays, and control spaces can be planned.

Hybrid Fibre Architecture and Signal Conversion

An HDMI Active Optical Cable is not a simple fibre lead with HDMI plugs. It is a hybrid, active device containing both optical and copper elements, as well as miniature electronics embedded within the connector heads. High-speed TMDS video and audio channels are transmitted over multimode glass fibres, typically OM3-grade, while lower-speed control and power signals remain on copper conductors.

At the source end, an integrated conversion chipset transforms the electrical HDMI signal into pulses of light using Vertical-Cavity Surface-Emitting Lasers. These photons travel down the fibre core without resistance, unaffected by attenuation or impedance variation. At the display end, a photodiode converts the light back into an electrical signal that the HDMI receiver can decode. Meanwhile, copper conductors handle EDID communication, HDCP authentication, hot-plug detection, and the 5V power rail. This division of labour allows the cable to retain full HDMI compatibility while eliminating the distance limitations of copper for high-bandwidth data.

EMI Immunity and Electrical Isolation

One of the most valuable characteristics of an active optical cable in Australian commercial environments is its immunity to electromagnetic and radio-frequency interference. Copper HDMI cables behave like antennas when routed near mains power, variable-speed drives, fluorescent lighting, or medical equipment. This interference introduces jitter and noise that quickly overwhelms high-frequency digital signals.

Optical fibre is a dielectric medium and carries no electrical current. By transmitting video as light rather than voltage, an AOC is immune to EMI and RFI. This provides inherent galvanic isolation for the video path, making AOCs the preferred choice in hospitals, laboratories, industrial facilities, and broadcast environments where electrical noise is unavoidable. The result is stable, repeatable performance regardless of surrounding infrastructure.

Directionality and Power Considerations

Unlike passive HDMI leads, active optical cables are directional. The internal laser transmitter and optical receiver are fixed to specific ends of the cable. Connector housings are clearly marked “Source” and “Display,” and reversing the cable will result in no image. In permanent installations, this makes correct orientation during installation critical, as correcting a reversed cable after walls or ceilings are closed can be costly.

Active optical cables also require power to operate the internal electronics. Most modern designs draw this power directly from the HDMI source’s 5V pin, typically consuming less than 100 mA. This eliminates the need for external USB power injectors, simplifying installation. However, integrators must ensure that the source device provides a stable 5V output. Some older or ultra-compact devices may struggle to supply sufficient current, in which case compatibility testing is essential during design.

Mechanical Protection and Installation Discipline

Although fibre within an AOC is reinforced with aramid yarn for tensile strength, it remains more sensitive to bend radius than copper. Excessive bending or sharp kinks can cause fibre fracture or macrobend loss, where light escapes the core and degrades the signal.

This is where installation discipline and proper containment are critical. The Schnap Electric Products ecosystem plays an important role in protecting AOCs during and after installation. Flexible conduit systems, smooth-bore ducting, and compliant cable management accessories prevent snagging on sharp studs and maintain safe bend radii through wall cavities and slab penetrations. Because AOC connector heads are larger than standard HDMI plugs, recessed wall boxes and brush plates designed for multimedia cabling are essential to avoid crushing or stressing the cable behind displays.

Bandwidth Headroom and Long-Term Planning

One of the strongest arguments for deploying HDMI Active Optical Cables is future-proofing. Replacing a cable concealed inside walls or ceilings is far more expensive than specifying adequate performance from the outset. While copper-based extender systems may support today’s 4K requirements, they may not accommodate higher frame rates, deeper colour formats, or emerging 8K content.

Active optical cables rated for 18 Gbps or 48 Gbps provide confidence that the physical infrastructure will not become the limiting factor as display technology evolves. The fibre medium itself has bandwidth potential far beyond current HDMI standards, meaning that future upgrades are constrained by connector electronics rather than the transmission path.

Compliance, Quality, and Procurement

Not all active optical cables are created equal. Low-cost imports often use plastic optical fibre instead of glass, or drive lasers beyond their safe operating limits, leading to early failure. Others lack proper fire ratings or struggle with HDCP stability across different source devices.

Professional AV integrators and facility managers mitigate these risks by sourcing AOCs through electrical wholesaler. These suppliers ensure compliance with Australian safety and cabling standards, including low-smoke zero-halogen jacket requirements where applicable. They also provide access to compatible cable management solutions, testing support, and manufacturer-backed warranties, reducing long-term operational risk.

Conclusion

The HDMI Active Optical Cable represents a fundamental shift in how high-bandwidth video is transported within buildings. By combining fibre-optic transmission with HDMI compatibility, it removes the distance and interference limitations that constrain copper cabling. When installed with proper orientation, protected by compliant containment, and supported by quality infrastructure from manufacturers like Schnap Electric Products, AOCs enable Australian industry professionals to deliver robust, interference-free, and future-ready AV systems. In an era where resolution and reliability continue to rise together, the speed of light has become the new standard.

In the retrofit-heavy landscape of Australian commercial audiovisual integration, the challenge of distributing modern digital content is often constrained by legacy infrastructure. Hotels, aged-care facilities, student accommodation, hospitals, and large hospitality venues were typically cabled decades ago with RG6 or RG11 coaxial networks designed for analogue free-to-air television. Re-cabling these sites with structured Category 6 or fibre backbones is expensive, disruptive, and frequently impractical in live environments. Yet the operational demand remains clear: distribute a single high-definition source, such as a Foxtel decoder, digital signage player, or security NVR, to dozens or even hundreds of televisions simultaneously.

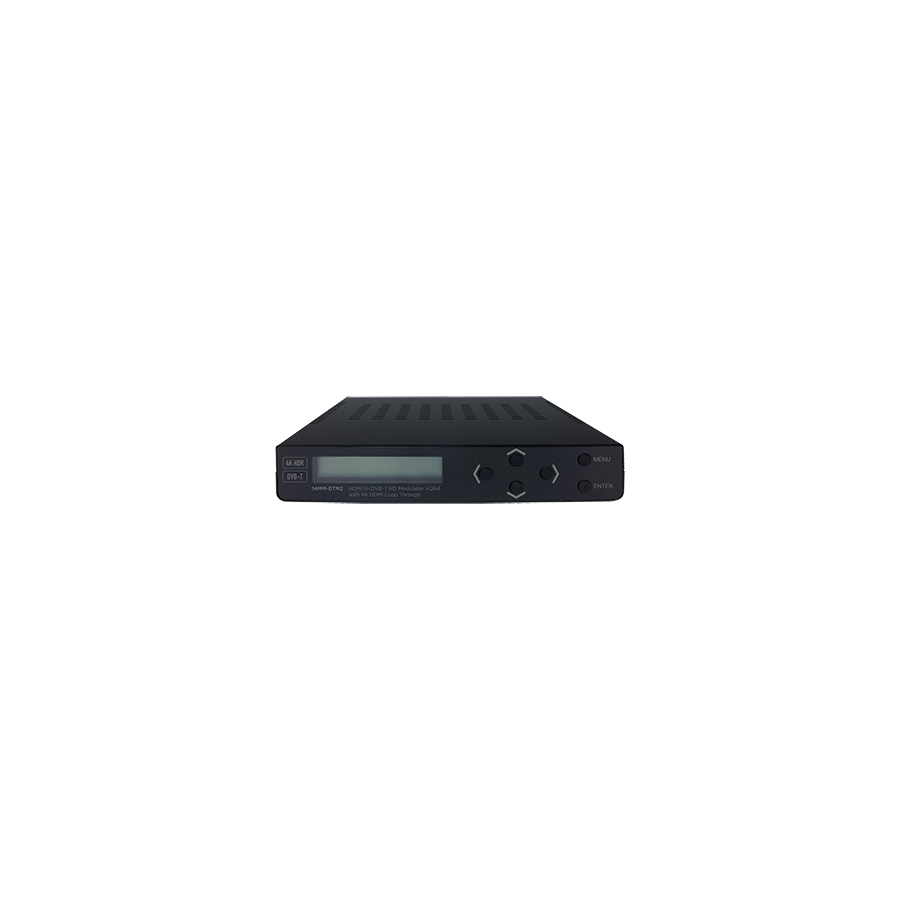

The engineering solution that bridges this gap between legacy cabling and modern content is the HDMI to DVB-T modulator. Rather than replacing the network, this device transforms an HDMI signal into a compliant digital terrestrial broadcast signal. Every connected television receives the content using its built-in tuner, as if it were a standard free-to-air channel. This approach turns the existing coaxial plant into a private digital broadcast network, maximising asset value while minimising capital expenditure.

COFDM Modulation and Digital RF Physics

At the heart of every HDMI to DVB-T modulator is Coded Orthogonal Frequency Division Multiplexing. COFDM is the same modulation technique used by Australian free-to-air broadcasters because it is exceptionally resilient in complex RF environments. Instead of placing all data on a single carrier, the modulator spreads information across thousands of narrow, orthogonal sub-carriers. Each carrier operates at a low data rate, making the signal highly resistant to reflections, echoes, and impedance mismatches commonly found in large MATV systems.

The HDMI source is first encoded, typically using MPEG-4 H.264 compression, then mapped onto the COFDM carrier set. This digital RF output occupies a standard 7 MHz television channel and can be injected directly into the existing antenna distribution system. Unlike analogue modulators of the past, the digital output does not gradually degrade. It remains perfect until the Modulation Error Ratio falls below threshold, at which point the picture fails abruptly. Understanding and managing this behaviour is critical to successful deployment.

Bandwidth, Bitrate, and Content Type

Australian DVB-T standards impose strict bandwidth limits. Each 7 MHz channel has a finite payload capacity, meaning the HDMI source must be compressed efficiently. Professional modulators allow precise bitrate control, giving integrators flexibility based on content type.

Static signage or menu boards require relatively low bitrates, while live sports, fast-moving graphics, or camera feeds demand higher bitrates to avoid macro-blocking and motion artefacts. Engineering consultants must balance picture quality against spectral efficiency, particularly when multiple modulators are deployed in the same headend. Latency is also a consideration. Encoding and modulation introduce a delay, typically between 200 ms and 500 ms. While acceptable for broadcast and signage, this delay must be considered where live audio reinforcement or real-time interaction is present.

Logical Channel Numbers and Spectrum Planning

Every DVB-T service includes a Logical Channel Number, the virtual channel displayed to viewers. Proper LCN management is essential in commercial MATV systems. Assigning an LCN that conflicts with local free-to-air services causes tuner confusion, intermittent lock, or channel disappearance after rescans.

Professional commissioning involves scanning the local RF environment to identify unused frequencies and vacant LCN ranges. The modulator is then configured with a unique service name and channel number, ensuring stable operation across all television brands. This spectrum planning step is often overlooked but is fundamental to long-term reliability.

MER and BER as Performance Benchmarks

Unlike analogue systems, visual inspection alone is meaningless in digital RF distribution. The true indicators of performance are Modulation Error Ratio and Bit Error Rate. MER reflects the accuracy of the digital constellation, while BER measures how many bits are being corrupted before and after error correction.

A professionally designed system targets MER values above 30 dB at the headend, providing sufficient margin to accommodate splitter losses and long cable runs. As the signal propagates through the MATV network, MER gradually degrades. If it falls below approximately 22 dB at the outlet, the television will fail. Proper output level setting, attenuation control, and impedance matching are therefore non-negotiable.

MATV Integration and Physical Layer Integrity

Integrating a modulator into an existing MATV headend requires more than simply connecting a cable. The modulator output must be combined with rooftop antenna feeds, amplified appropriately, and distributed evenly. Impedance mismatches, poor terminations, or water ingress will destroy digital signal quality long before picture loss becomes visible.

This is where quality infrastructure becomes critical. Schnap Electric Products manufactures F-type compression connectors, splitters, and RF accessories designed to maintain consistent 75-ohm impedance. Compression connectors provide a gas-tight seal that prevents oxidation and RF leakage, while precision splitters ensure predictable attenuation across all ports. In a digital MATV environment, these seemingly minor details directly determine system stability.

Power quality is equally important. HDMI to DVB-T modulators contain sensitive encoding processors that are vulnerable to voltage transients. In commercial plant rooms shared with lifts, refrigeration, or HVAC equipment, surge filtration and stable power delivery are essential to prevent lock-ups and premature failure.

HDCP Compatibility and Source Protection

Modern HDMI sources often enforce High-bandwidth Digital Content Protection. A modulator that cannot negotiate HDCP correctly will simply broadcast a black screen. Professional HDMI to DVB-T modulators are designed to handle HDCP handshakes reliably, ensuring compatibility with Foxtel boxes, media players, and corporate sources. This capability is essential in hospitality and accommodation environments where content sources may change over time.

Procurement, Compliance, and Longevity

The market contains many low-cost modulators designed for overseas standards or domestic hobby use. These units often suffer from thermal instability, poor MER performance, or incomplete DVB-T compliance. In an Australian commercial context, such failures lead to costly downtime and repeated service calls.

Professional contractors source modulators through specialised electrical wholesaler who understand Australian broadcast standards. These suppliers ensure compliance with local DVB-T parameters, provide access to attenuation pads and test equipment, and support long-term system scalability. Correct procurement is as important as correct installation.

Conclusion

The HDMI to DVB-T modulator is a powerful tool for extending the life and value of legacy coaxial infrastructure. It transforms a single HDMI source into a private digital television channel, accessible on every standard tuner without additional hardware. By understanding COFDM modulation, managing bitrate and LCN allocation, and supporting the RF network with high-quality infrastructure from manufacturers such as Schnap Electric Products, Australian industry professionals can deliver reliable, broadcast-grade content distribution across even the largest MATV systems. In digital RF design, precision at the headend defines performance at every screen.

In the contemporary Australian commercial audiovisual environment, the move from Full HD to Ultra High Definition has transformed expectations while simultaneously exposing the physical limits of copper-based signal transmission. From corporate boardrooms and university lecture halls to medical imaging suites and high-impact digital signage, 4K resolution is now considered a baseline requirement rather than a premium feature. This uplift in image quality, however, demands exponentially more bandwidth. A 4K signal at 60Hz with full 4:4:4 chroma subsampling requires up to 18Gbps of continuous data throughput. At these frequencies, standard HDMI cabling encounters severe attenuation, timing distortion, and voltage loss.

As a result, even high-quality passive HDMI cables frequently fail beyond 5 to 7 metres, producing the familiar symptoms of pixel drop-out, flicker, or total loss of sync. Where HDBaseT or fibre optic systems are unnecessary or cost-prohibitive, the professional engineering solution is the 4K HDMI Repeater. This compact yet sophisticated device actively regenerates the HDMI signal, restoring integrity and extending usable cable distance without compression or latency.

TMDS Signal Physics and the Digital Eye

HDMI transmission relies on Transition Minimized Differential Signaling. TMDS is designed to reduce electromagnetic emissions and improve noise immunity, but it is still subject to the fundamental laws of electrical transmission. As signal frequency increases, copper conductors exhibit greater resistance and dielectric loss. Over distance, this causes amplitude reduction and timing instability, commonly referred to as jitter.

In an ideal system, digital data appears as a clean square wave. Over long cable runs, the sharp transitions between logical states become rounded, narrowing the “eye diagram” at the receiver. When the eye closes beyond tolerance, the display can no longer reliably distinguish between binary states. A passive coupler merely adds resistance and capacitance, accelerating failure.

A 4K HDMI repeater actively intervenes in this process. It samples the degraded TMDS stream, equalises high-frequency losses, and re-clocks the data using an internal timing reference. This regeneration process restores full signal amplitude and timing accuracy before transmitting a new, clean output signal. In practical terms, the repeater resets the transmission distance, allowing two long cable segments to behave like two independent short runs.

Power Integrity and Voltage Drop Control

Beyond data, HDMI includes a 5V power line used to support EDID communication and display detection. Over extended cable lengths, voltage drop becomes significant, particularly when using compact source devices with limited power output. If the voltage at the display falls below operational threshold, the HDMI handshake fails and the screen remains blank.

Professional 4K HDMI repeaters address this weakness through external power injection. Typically supplied via a micro-USB or DC input, this auxiliary power source stabilises the 5V rail independently of the source device. This design is especially important in modern installations where laptops, tablets, or USB-C docks act as HDMI sources. The repeater isolates the system from weak source power and ensures consistent device recognition.

HDCP 2.2 Authentication and Content Security

Modern 4K content delivery is governed by HDCP 2.2 encryption. This protocol requires continuous authentication between the source, any intermediate devices, and the display. A repeater functions as an active node within this encrypted chain. If it fails to manage authentication correctly, the source will deliberately block video output.

Professional repeaters are engineered with dedicated HDCP engines that manage upstream and downstream authentication simultaneously. They maintain key exchange stability, prevent handshake timeouts, and ensure encrypted content passes transparently without added latency. This capability is critical for commercial signage, broadcast feeds, and protected media playback where content failure is unacceptable.

Bandwidth Headroom and HDR Compatibility

Not all 4K signals are equal. Many low-cost devices advertise “4K support” while only handling HDMI 1.4 bandwidth, limited to 4K at 30Hz. Modern AV systems routinely require HDMI 2.0 performance, delivering 18Gbps throughput to support 4K60, HDR10, and extended colour depth.

A properly specified 4K HDMI repeater must explicitly support 18Gbps data rates. This bandwidth ensures that High Dynamic Range metadata, expanded colour space, and fast refresh rates are preserved end-to-end. Under-rated repeaters often down-sample chroma or strip HDR data, producing dull images that undermine the purpose of a 4K deployment.

Installation Environment and Mechanical Protection

Repeaters are commonly installed in ceiling cavities, floor boxes, lecterns, or wall recesses. These environments expose devices to vibration, temperature variation, and mechanical strain from long cable runs. Without proper support, the weight of HDMI cables can stress connector ports, leading to intermittent failures.

This is where installation infrastructure becomes as important as electronics. High-quality cabling and mounting accessories ensure the repeater remains mechanically stable. The use of robust HDMI cables with thicker copper conductors is essential, as the repeater cannot recover a signal that has already collapsed due to poor cable quality.

This is also where Schnap Electric Products commonly integrates into commercial AV systems. Their high-speed HDMI cables, mounting accessories, and cable management solutions are designed to maintain signal integrity while providing physical protection. Proper strain relief, secure mounting, and controlled bend radius all contribute to long-term reliability.

System Design and Practical Distance Extension

In a typical deployment, a 4K HDMI repeater allows two 10-metre or two 15-metre HDMI cables to be joined reliably, extending total distance to 20 or 30 metres depending on cable quality and signal format. This approach is ideal for boardrooms, classrooms, and signage where the source rack must remain centralised while displays are distributed across large spaces.

The repeater introduces no compression and no perceptible latency, making it suitable for real-time applications such as medical imaging, live presentations, and interactive systems.

Procurement, Compliance, and Reliability

The market contains many low-cost HDMI boosters that lack proper equalisation, external power options, or HDCP stability. These devices often work briefly during testing but fail under continuous operation, leading to costly call-backs and reputational damage.

Professional AV integrators procure repeaters through electrical wholesaler who validate compliance with Australian safety standards and confirm true 18Gbps capability. These suppliers also provide compatible power supplies, mounting hardware, and supporting cabling, enabling complete and dependable system delivery.

Conclusion

The 4K HDMI repeater is a critical enabler of modern high-resolution AV design. It overcomes the physical limitations of copper transmission by actively regenerating the TMDS signal, stabilising voltage delivery, and preserving content security. When combined with correctly specified cabling, external power support, and quality installation hardware from manufacturers such as Schnap Electric Products, it allows Australian industry professionals to deliver flawless 4K experiences well beyond the reach of passive HDMI cables. In the science of digital transmission, regeneration is what transforms distance from a limitation into a design choice.
